MOTION GMBH  ·  INITIALIZING
5-Finger Dexterous Hand
DEXTEROUS HAND
Smart 3-Jaw Gripper
SMART GRIPPER
Delta Robot
DELTA ROBOT
Hamburg, Germany · Robot End-Effector Specialists
BONMET
MOTION GMBH

Intelligent End-Effectors

12 years of servo control expertise and 7 years of robotics application experience. Dexterous hands, smart grippers, Delta/Scara robots, multi-axis servo drivers — delivering core actuation technology for the humanoid robotics era.

12+
Yrs Servo Exp.
22
Hand Joints
7+
Yrs Robotics
Multi
Patents
Scroll Down
Full Product Range

Complete Robot End-Effector Ecosystem

From 5-finger humanoid dexterous hands to multi-joint smart grippers, from high-speed Delta robots to integrated servo motors — covering every scenario in industrial automation and humanoid robotics.

📚
Product Documentation & Downloads
Datasheets · User Manuals · Operation Videos · Software & Drivers
📥 Go to Downloads
End Effectors

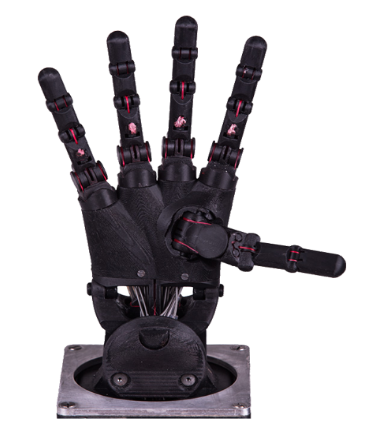

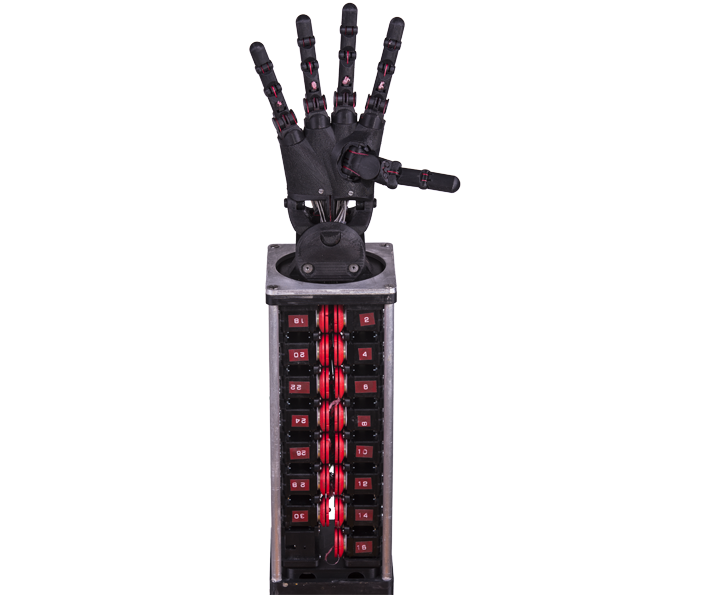

5-Finger Dexterous Hand SCP-E5-1722
01 · FLAGSHIP · END EFFECTOR
Dexterous Hand 5F
Dexterous Hand · SCP-E5-1722
Highly realistic adult-hand replica with 22 degrees of freedom, fully replicating the motion capability and dexterity of the human hand. Elastic gripping surfaces ensure reliable object handling. Biomimetic design based on human kinematics. Includes simulation motion software and voice-control app.
ModelSCP-E5-1722-R/L
Joints22 joints · 1:1 scale
Length / Weight500mm · 2.3kg
Power Supply12V DC
CommunicationRS485 / EtherCAT
Patent ProtectedLeft & RightBuilt-in Drive
Product Demo · 5F Dexterous Hand Motion
Smart 3-Jaw Gripper SCP-E3-380
02 · END EFFECTOR
Smart 3-Jaw Gripper
Smart 3-Jaw Gripper · SCP-E3-380
Multi-joint variable-position gripping tool. All three fingers extend longitudinally and support wide-angle lateral rotation. Capable of grasping cylindrical, spherical, square, sponge and irregular objects. Includes torque control software and vision guidance system.
ModelSCP-E3-380
DOF7 DOF
Grip Range5 ~ 380mm
Protection / WeightIP54 · 1.95kg
CommunicationCAN / RS232 / EtherNet
IP54 RatedCompliant GraspingVision Guided
Product Demo · Smart 3-Jaw Gripper
Robot Systems

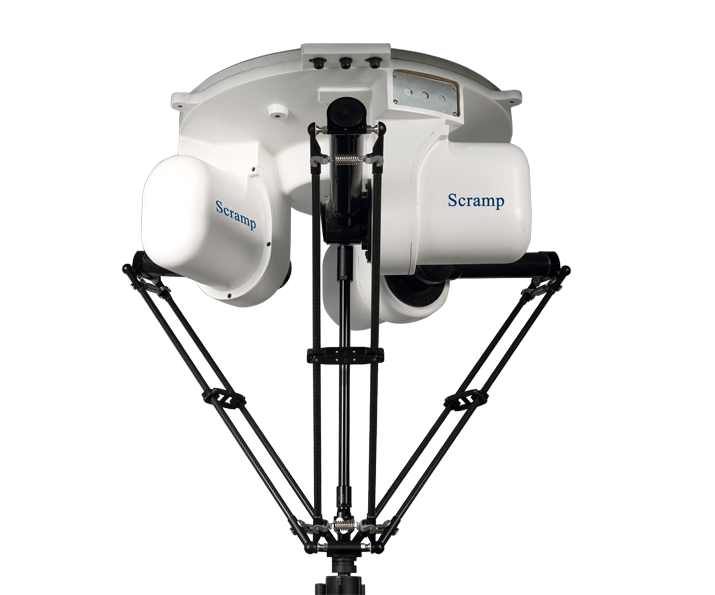

Delta Robot SCP-D4
03 · ROBOT SYSTEM
Delta Robot
Delta Parallel Robot · SCP-D4
High-speed parallel robot for pick-and-place, sorting and packaging. Features EtherCAT real-time bus control and integrated vision system for intelligent production line automation.
ModelSCP-D4
Axes4 DOF
BusEtherCAT
ApplicationsFood / Packaging / Sorting
High SpeedVision IntegrationEtherCAT
Scara Robot SCP-S4
04 · ROBOT SYSTEM
Scara Robot
Scara Robot · SCP-S4
4-axis horizontal articulated robot for assembly, handling and dispensing tasks. Compact footprint with high repeat positioning accuracy, ideal for electronics and light manufacturing.
ModelSCP-S4
Axes4 DOF
BusEtherCAT
ApplicationsAssembly / Dispensing / Handling
High PrecisionCompactFast Deployment

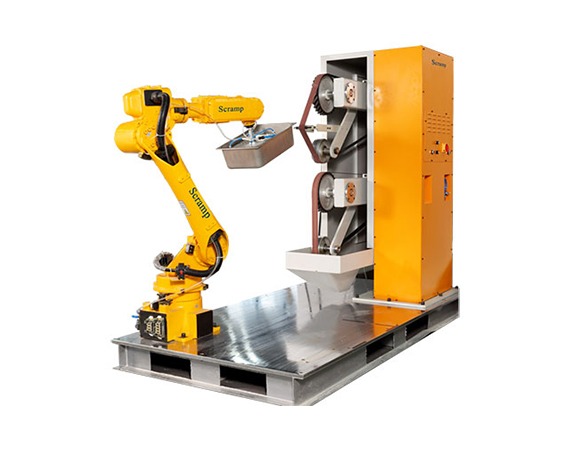

Polishing Workstation
05 · ROBOT SYSTEM
Polishing Workstation
Automated Polishing Station
Robotic polishing workstation integrating force control, path planning and vision guidance. Delivers consistent surface quality for metal, ceramic and composite workpieces.
ControlForce / Position Hybrid
VisionIntegrated
ApplicationsMetal / Ceramic / Composite
Force ControlAuto Path PlanVision Guided
Ask AI Advisor →
Motion Control & Drives
Robot Controller SCP-C-i5
06 · MOTION CONTROL
Robot Controller
Robot Motion Controller · SCP-C-i5
Multi-axis coordinated motion controller based on Intel i5 platform with real-time EtherCAT bus. Compatible with Delta, Scara, 6-axis and humanoid robots. Programmed using Codesys V3 / IEC61131-3.
CPUIntel Core i5-7500
Storage32GB SSD · 2G RAM
BusEtherCAT
ProgrammingCodesys V3 · IEC61131-3
Power12Vdc
Multi-RobotVision Built-inPLC-Open

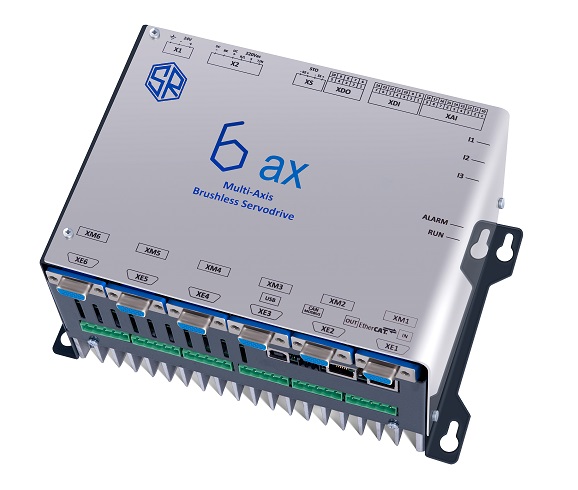

6-in-1 Servo Driver SCP-SD-6AX
07 · MOTION CONTROL
6-in-1 Servo Driver
6-in-1 Servo Driver · SCP-SD-6AX
One driver unit controls 6 servo motors with shared DC bus delivering 50%+ energy savings and 50% space reduction. Supports Tamagawa / Heidenhain absolute encoders with automatic motor tuning.
Model SeriesSCP-SD-4AX / 6AX
Energy Saving50%+ Shared DC Bus
Current Loop8KHz
EncoderEnDat 2.2 / SmartAbs
BusEtherCAT / CANopen / Modbus
50%+ Energy SavingAuto TuningModular
Single-Axis Servo Driver SCP-SD3L
08 · MOTION CONTROL
Single-Axis Servo Driver
Single-Axis Servo Driver · SCP-SD3L
DSP + FPGA + IPM fully digital control. Supports differential input, pulse+direction, and analog input. Integrates speed / torque / position control with full closed-loop linear scale feedback.
ModelSCP-SD3L010-1E / 025-1E
Rated Current10A / 25A
Max Power2.6kW / 5.5kW
Power Supply220V AC Single/3-Phase
BusCANopen / EtherCAT
Full DigitalFull Closed LoopAuto Motor ID
AI Digit Employ
09 · AI SOLUTIONS
AI Digit Employ
AI Digital Employment Platform · SCP-ADE
An AI-powered digital employment and task automation platform integrating intelligent robot scheduling, workforce coordination and real-time production analytics. Bridges human operators and robotic systems through intuitive AI interfaces.
PlatformCloud + Edge Hybrid
InterfaceWeb / Mobile / API
IntegrationEtherCAT / OPC-UA / REST
AI EngineLLM + Computer Vision
DeploymentOn-Premise / SaaS
No-Code SetupReal-Time AnalyticsMulti-RobotAI-Driven
Ask AI Advisor →
Documentation

Downloads & Resources

Access complete product documentation including datasheets, user manuals, operation guides and instructional videos for all Bonmet Motion GmbH products.

📥 Open Downloads Center
📖
Product Catalogs
Full product range overview & specifications
📋
User Manuals
Installation, wiring & programming guides
🎬
Operation Videos
Step-by-step setup & operation tutorials
💾
Software & Drivers
PC software, firmware updates & drivers
AI Technology Services

Intelligent Software Ecosystem

A complete suite of AI software solutions — from robot simulation and voice control to vision guidance and torque control — empowering customers to deploy intelligent production rapidly.

🤖
AI Product Advisor
Powered by our complete product knowledge base, available 24/7. Accurately answers technical specifications, selection guidance and partnership inquiries.
🎮
Robot Simulation Software
Front-end solution validation and trajectory simulation to reduce project risk. Supports Delta, Scara and 6-axis robot simulation.
🗣️
Voice Control App
Control robots and dexterous hands via voice commands. Supports English and Chinese speech recognition. Ideal for service robots and demos.
👁️
Vision Guidance System
Vision-guided grasping system for smart grippers. Features target recognition, position localization and automatic grasp planning.
⚖️
Torque Control Software
Precision torque control for delicate operations with smart grippers and dexterous hands. Prevents over-force damage to precision components.
📊
BSI Monitoring System
Powerful monitoring software for waveform capture, state machine viewing and host machine monitoring. Windows PC debugging tool.
⚡ Chat with AI Advisor Now
Partnership & Investment

Turn 10 Years of R&D
Into Industrial Value

Dexterous hand R&D began in 2010 and entered real-world application in 2015, accumulating over 10 years of engineering experience. Help your organization skip 3–5 years of development and gain genuine competitive advantage.

01
Technology Transfer
Full transfer of dexterous hand structural technology, control systems and drive systems, including complete engineering drawings, BOM lists, commissioning documentation and technical training support.
Humanoid Robot OEMsFull Technology AccessFast Market Entry
02
Technology Licensing
Modular licensing available — choose hand structure, control system or grasping algorithm modules. Supports exclusive, non-exclusive and regional licensing arrangements.
Existing Robot ProductsModular IntegrationFlexible Terms
03
Joint Development
Co-develop next-generation dexterous hands or humanoid robot hands with shared IP ownership. Cuts development timelines by over 50% compared to independent R&D.
Robotics StartupsShared IPFast Prototyping
04
Strategic Investment
Open to strategic investment, technology acquisition and joint-venture formation. Suitable for companies looking to enter the humanoid robotics sector.
Listed CompaniesInvestment FundsGlobal Integrators
Partnership Process
01
Technical Exchange
Understand your needs, present our technology and identify the right collaboration direction
02
Prototype Validation
Arrange prototype demonstration and technical validation for your specific application
03
Define Terms
Negotiate licensing, development or investment cooperation terms
04
Sign Agreement
Complete legal documents and launch cooperative execution
Inquiry · Partnership Discussion
About Us

Bonmet Motion GmbH

Bonmet Motion GmbH is a high-tech manufacturer specializing in motion control and robotic systems integration, based in Hamburg, Germany. Our core technology stems from 12 years of servo controller development and 7 years of robotic application experience, with ongoing research collaboration with Hamburg University of Technology and the University of Bologna (Italy).

Dexterous hand development began in 2010 and entered practical application around 2015, accumulating over 10 years of engineering experience. Our products have completed a full validation cycle from prototype → engineering sample → real-world deployment.

Our products are widely deployed in robotic drive control, packaging machinery, printing machinery, food machinery, woodworking machinery, glass machinery, polishing machinery, research institutes, aerospace and underwater equipment.

12+
Yrs Servo Control
7+
Yrs Robotics
2010
R&D Start Year
Multi
Design Patents
Bonmet Motion GmbH Team
Core Patents
5-Finger Dexterous Hand design patent (SCP-E5-1722) — multi-joint biomimetic hand structure and integrated drive method
Smart 3-jaw multi-DOF grasping system patent — force-position hybrid control method and apparatus
AI Digit Employ platform patent — intelligent robot scheduling and workforce coordination algorithm
Multi-axis coordinated controller architecture patent — real-time EtherCAT bus scheduling algorithm
Company Introduction · Bonmet Motion GmbH
Contact Us
💬
📧
Email
robert.wu.hh [at] gmail.com
📍
Address
Am Damm 36a, 22175 Hamburg, Germany
Business Hours
Mon–Sat 09:00–18:00 CET · AI Advisor 24/7
